Evaporator Fin Type

Evaporator Fin Type

• Blue Fin

Condenser Fin Type

• Bare Fin

Stepped Louvers

• Yes

Installation Details

Installation Details

• Split Air-Conditioners: -Drilling holes into a brick wall to take out the pipes (excluding core cutting) -Fixing a hole sleeve & cap -Fixing & connecting indoor and outdoor units with copper pipes & installation of drainage pipes using the standard kit provided by the manufacturer -Installation of separately purchased power plug, MCB & power stabilizer -Temperature & gas pressure testing -Demo of the product Window Air-Conditioners: -Installing the AC as per the specifications/requirements -Connection to separately purchased stabilizer/power point in the range of the power cord provided by the manufacturer -Demo of the product Note: Charges are to be paid directly to the Brand/Jeeves authorized technician at the time of installation.

Technician Visit Details

• Authorized Service Engineer will do the following: -Repair or change the defective part -Provide replacement to the customer in case part or product is not repairable (only after replacement request approved)

Uninstallation Details

• For returns, the uninstallation process includes: - Authorized service engineer visiting the customer's location - Uninstalling the product - Packing the item - Picking up the product

Panel Display

Panel Display

• LED Display

Indoor Temperature Indicator

• Yes

Turbo Mode

• Yes

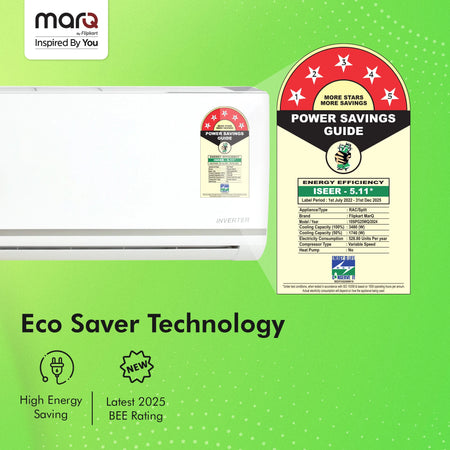

ISEER

• 5.11 W/W

Air Circulation

Air Circulation

• 500 CFM

Auto Air Swing

• Yes

Air Flow Direction

• 4 Way Air Direction

Anti-bacteria Filter

• No

Dust Filter

• Yes

Active Carbon Filter

• No

Deodorizing Filter

• No

LED Backlit Buttons

LED Backlit Buttons

• Yes

Battery Type

• 2

In The Box

In The Box

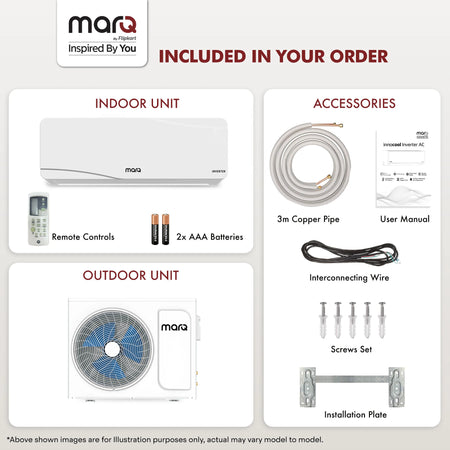

• 1 Indoor Unit, 1 Outdoor Unit, Remote Control, Installation Plates, Screws Set, Wire, User Manual, 3 m Copper Pipe, 2 AAA Batteries

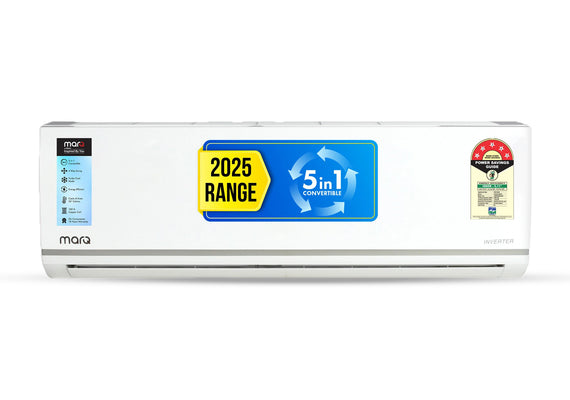

Brand

• MarQ by Flipkart

Model Name

• 105IPG25WQ

Type

• Split

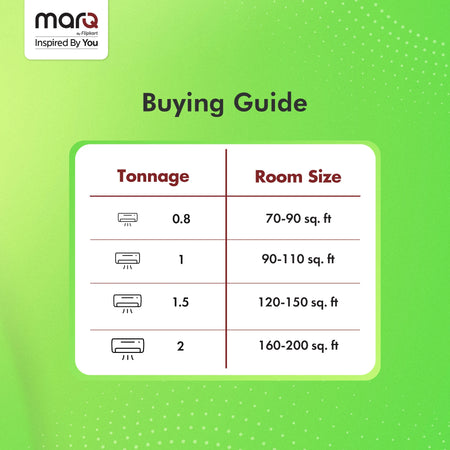

Capacity in Tons

• 1 Ton

Star Rating

• 5 Star BEE Rating

BEE Rating Year

• 2025

Color

• White

Cooling and Heating

• No

Cooling Capacity

• 3480 W

Compressor

• Variable Speed

Dehumidification

• Yes

Remote Control

• Yes

Refrigerant

• R-32

Operating Modes

• Eco Mode, Auto Mode, Cool Mode, Dry Mode

Condenser Coil

• Copper

Indoor W x H x D

Indoor W x H x D

• 81 cm x 26.9 cm x 21.1 cm

Indoor Unit Weight

• 10 kg

Outdoor W x H x D

• 83.5 cm x 56 cm x 35.2 cm

Outdoor Unit Weight

• 26 kg

Disclaimer

Disclaimer

• The manufacturing date can be earlier than the model year.

Power Requirement

Power Requirement

• AC 165 - 265 V

Annual Electricity Consumption

• 526.8 Units

Convenience Features

Auto Restart

• Yes

Timer

• Yes

Quiet Mode

• Yes

Sleep Mode

• Yes

Memory Feature

• Yes

Self Diagnosis

• Yes

Warranty Summary

• 1 Year Warranty on Product and 10 Years Warranty on Compressor

Covered in Warranty

• All Functional Part of AC and Compressor Other Than Aesthetic Parts (Plastic Parts) will Covered in Warranty

Not Covered in Warranty

• Parts: Air Filter or Front Grill is Not Covered in the Warranty After Installation. The Warranty does not Cover Installation or Demonstration. Accessories External to the System Damage Parts. The Product is Not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification or Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises Where the Product is Kept) Conditions that do not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.

Warranty Service Type

• Technician Visit
